Led emergency exit sign Explosion Proof Edge Lit LED Exit Light J SERIES-10
Marking UL844 (North American)
Class I, Division 1, Groups B, C, D
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
UL Marking
UL924
UL844
UL 121201/CSA NO.213
CSA C22.2 No.137-18
Temperature Class (T-Rating)-T6
IP66
Housing: A356T6 aluminum (less than .4% copper content) with baked-on gray epoxy finish
Gasket: One-piece silicone
Hardware: Stainless steel
Mounting Sling: Stainless steel
EXIT Sign: Tempered glass
- Low energy consumption (3W/5W).
- 3-hour emergency operation.
- Alternate exit legend and languages available.
- Provided with 3/4＂NPT or M25 conduit hubs.
- Long lifespan up to 50,000 hours.
- Multiple installation options: wall mounting, pendant mounting, and pendant mounting with safe-wire.
- Working temperature ranges from -40°F to 140°F.
- 5-year warranty. Model EX-3W JNGD180 EX-5W JNGD180 3W(Max) 5W(Max) >70 Red or Green 3 hours Wattage Operating Voltage CRI Color Temperature Emergency
- Time AC100-277V Edge-lit sign
| Model | Wattage | Operating Voltage | CRI | Color Temperature | Emergency Time |
| EX-3W JNGD180 | 3W(Max) | AC100-277V AC100-347V | >70 | Red or Green | 3 hours |
| EX-5W JNGD180 | 5w(Max) |
| Model | Quantity/Carton | Packing Size(inch) | Net Weight | Gross Weight |
| J | 2 PCS | 18.50*18.50*10.24 | 13.23lbs | 30.86lbs |

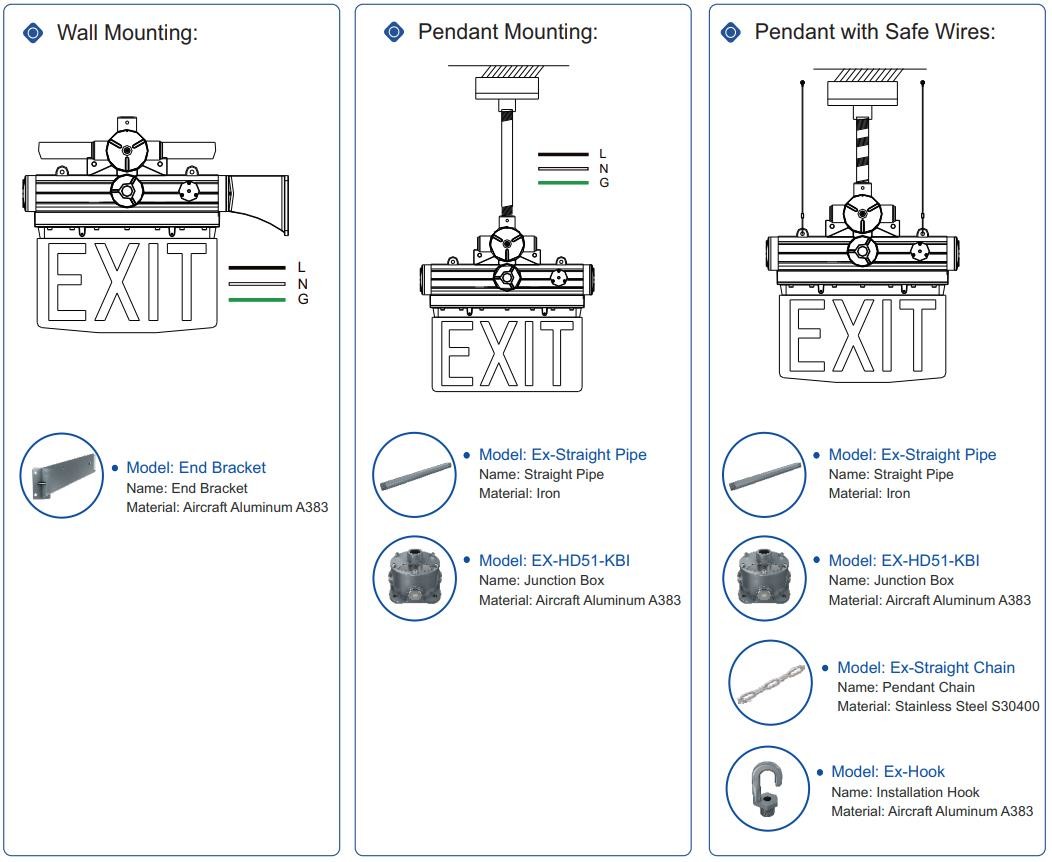

- Mounting Methods and Accessories:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
