Explosion Seal Bushings for isolating seal between pipes and explosion-proof enclosures AG
Copper free aluminum, plastic-sprayed surface.
Widely used for isolating seal between pipes and explosion-proof enclosures.
Five types available .
Degree of protection: IP66-IP67.
Marking ATEX
Ⅱ 2 G Ex db ⅡC Gb/Ⅱ 2 G Ex eb ⅡC Gb
Ⅱ 2 D Ex tb ⅢC Db IP66
Marking IECEx
Ex db ⅡC Gb/Ex eb ⅡC Gb
Ex tb ⅢC Db IP66
Marking UL1203: Class I, Division 1, Groups A, B, C, D
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Standard: EN 60079-0,EN 60079-7,EN 60079-31 IEC 60079-0,IEC 60079-7,IEC 60079-31
Ambient Temperature: -60℃ ~ +75℃

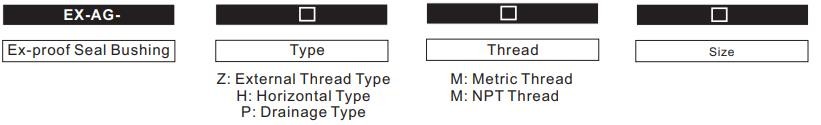

Structure Type: Z.H.P
Connection Thread:
1. Metric thread is standard type. NPT or other threads are optional, and please specify when ordering.
2. The standard thread pitch of metric thread is 1.5mm.
Other pitches can be customized, and please specify when ordering.
3. No filler for standard design, please specify when ordering
| Internal thread "H” | Dimension(mm) | Cable outer diameter(mm) |
| Metric | NPT | A*B |
| M20*1.5 | ½ | 100*62 | 8~10 |
| M25*1.5 | ¾ | 108*69 | 10~14 |
| M32*1.5 | 1 | 118*78 | 12~17 |
| M40*1.5 | 1 1/4 | 129*90 | 15~23 |
| M50*1.5 | 1 1/2 | 140*97 | 17~26 |
| M63*1.5 | 2 | 159*110 | 25~35 |
| M75*1.5 | 2 1/2 | 190*135 | 30~50 |
| M90*1.5 | 3 | 210*147 | 38~57 |
| M100*1.5 | 3 1/2 | 230*167 | 40~70 |
| M115*1.5 | 4 | 240*183 | 48~80 |
| Internal thread "H” | Dimension(mm) | Cable outer diameter(mm) |
| Metric | NPT | A*B |
| M20*1.5 | ½ | 83*61 | 8~10 |
| M25*1.5 | ¾ | 94*72 | 10~14 |
| M32*1.5 | 1 | 109*86 | 12~17 |
| M40*1.5 | 1 1/4 | 129*102 | 15~23 |
| Internal thread "H” | Dimension(mm) | Cable outer diameter(mm) |
| Metric | NPT | A*B |
| M20*1.5 | ½ | 94*107 | 8~10 |
| M25*1.5 | ¾ | 108*112 | 10~14 |
| M32*1.5 | 1 | 118*118 | 12~17 |
| M40*1.5 | 1 1/4 | 129*129 | 15~23 |
| M50*1.5 | 1 1/2 | 140*142 | 17~26 |
| M63*1.5 | 2 | 159*155 | 25~35 |
| M75*1.5 | 2 1/2 | 190*185 | 30~50 |
| M90*1.5 | 3 | 210*202 | 38~57 |
| M100*1.5 | 3 1/2 | 230*215 | 40~70 |
| M115*1.5 | 4 | 240*242 | 48~80 |
| Internal thread "H” | Dimension(mm) | Cable outer diameter(mm) |
| Metric | NPT | A*B |
| M20*1.5 | ½ | 83*61 | 8~10 |
| M25*1.5 | ¾ | 94*72 | 10~14 |
| M32*1.5 | 1 | 109*86 | 12~17 |
| M40*1.5 | 1 1/4 | 129*102 | 15~23 |
| Internal thread "H” | Dimension(mm) | Cable outer diameter(mm) |
| Metric | NPT | A*B |
| M40*1.5 | 1 1/4 | 129*129 | 15~23 |
| M50*1.5 | 1 1/2 | 140*136 | 17~26 |
| M63*1.5 | 2 | 159*155 | 25~35 |
| M75*1.5 | 2 1/2 | 190*169 | 30~50 |
| M90*1.5 | 3 | 210*203 | 38~57 |
| M100*1.5 | 3 1/2 | 230*229 | 40~70 |
| M115*1.5 | 4 | 240*242 | 48~80 |
